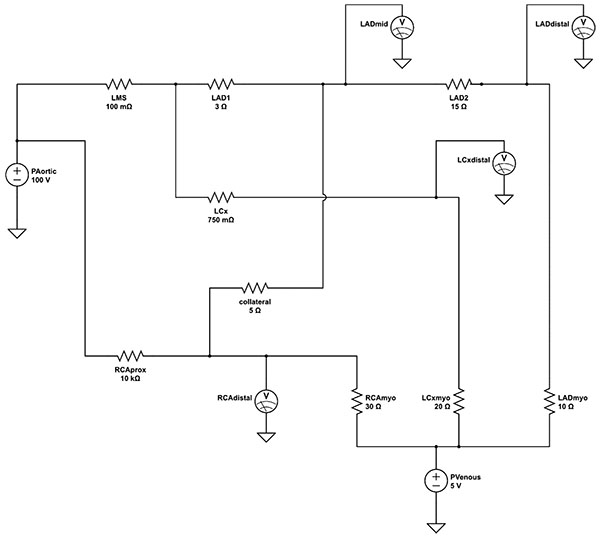

Fig. (2) Analog circuit coronary model. Simplified analog electrical circuit to model coronary anatomy. Resistor LAD1 represents the proximal LAD stenosis while LAD2 represents the distal LAD stenosis at baseline values of 3Ω and 15Ω respectively. The mild LCx disease is modeled by resistor LCx (750mΩ). The proximal RCA resistance is high (10kΩ) to model the effective vessel occlusion. RCAmyo, LCxmyo, and LADmyo resistors represent the myocardial bed resistance of the RCA (30Ω), LCx (20Ω) and LAD (10Ω) territories respectively; current flow was measured across these resistors under different simulation settings. Voltmeters are positioned to measure voltages at the mid LAD, distal LAD, distal LCx, and distal RCA parts of the circuit.
